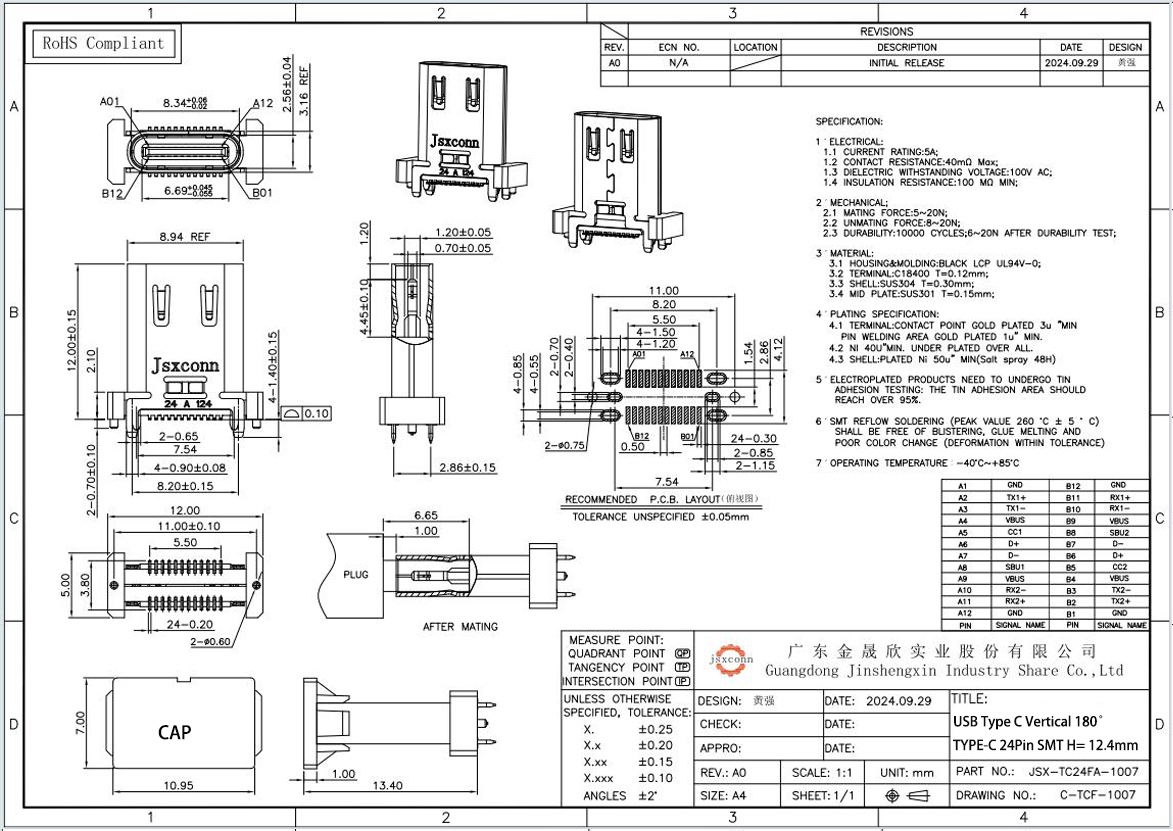

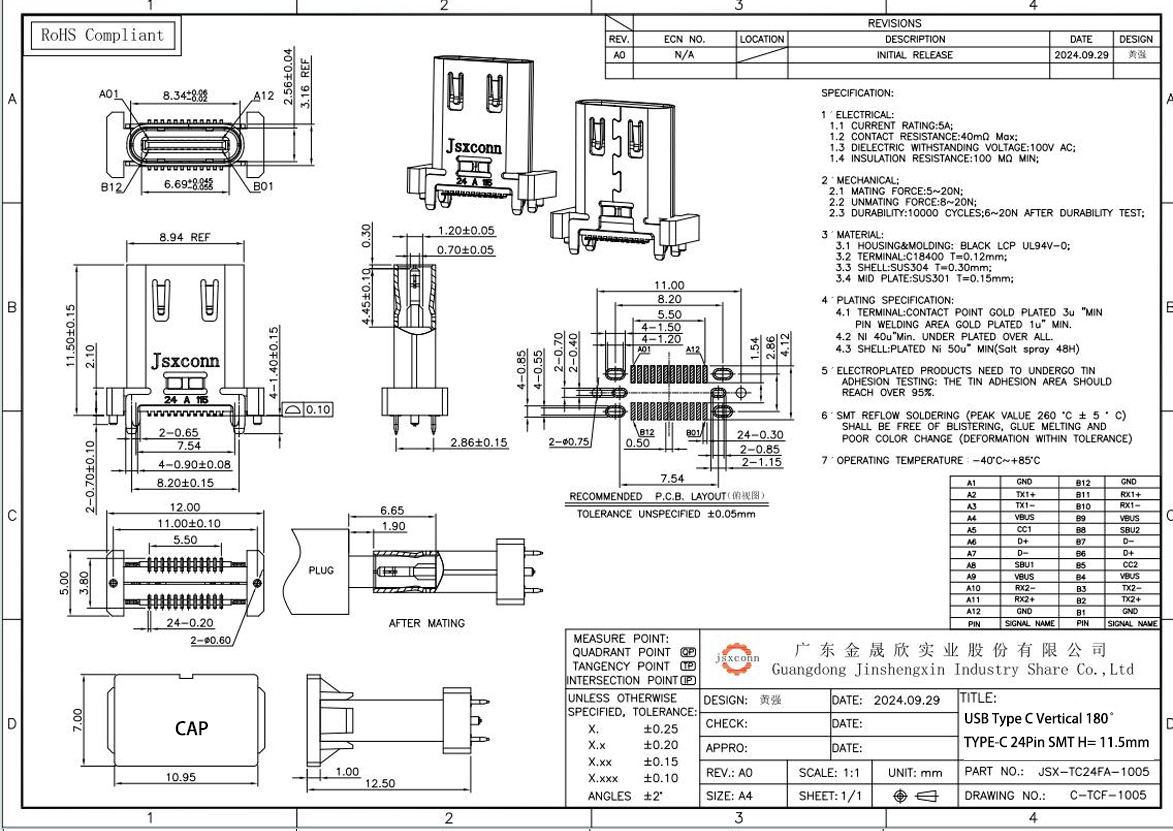

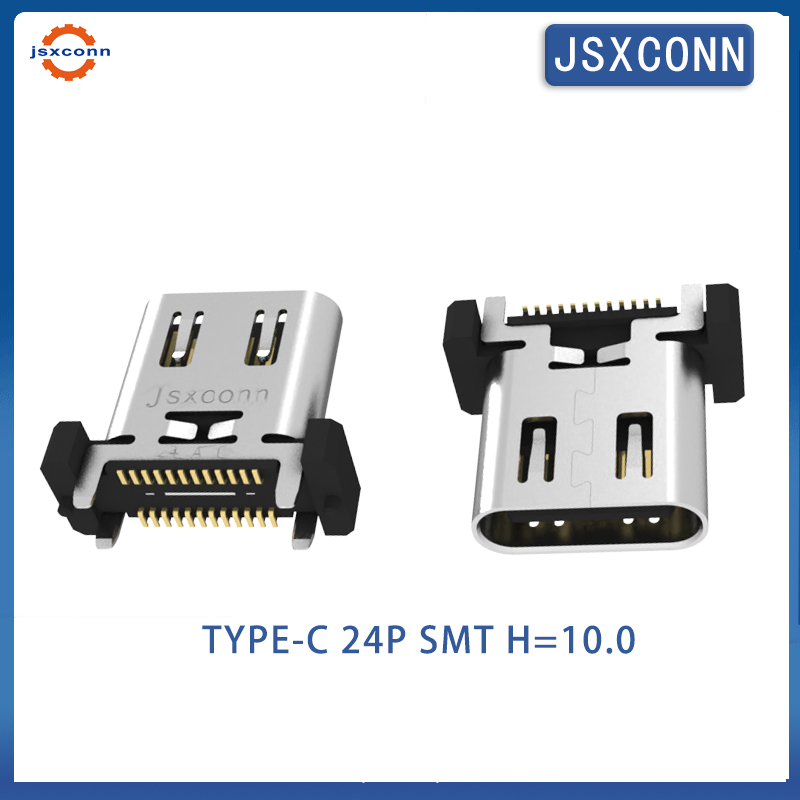

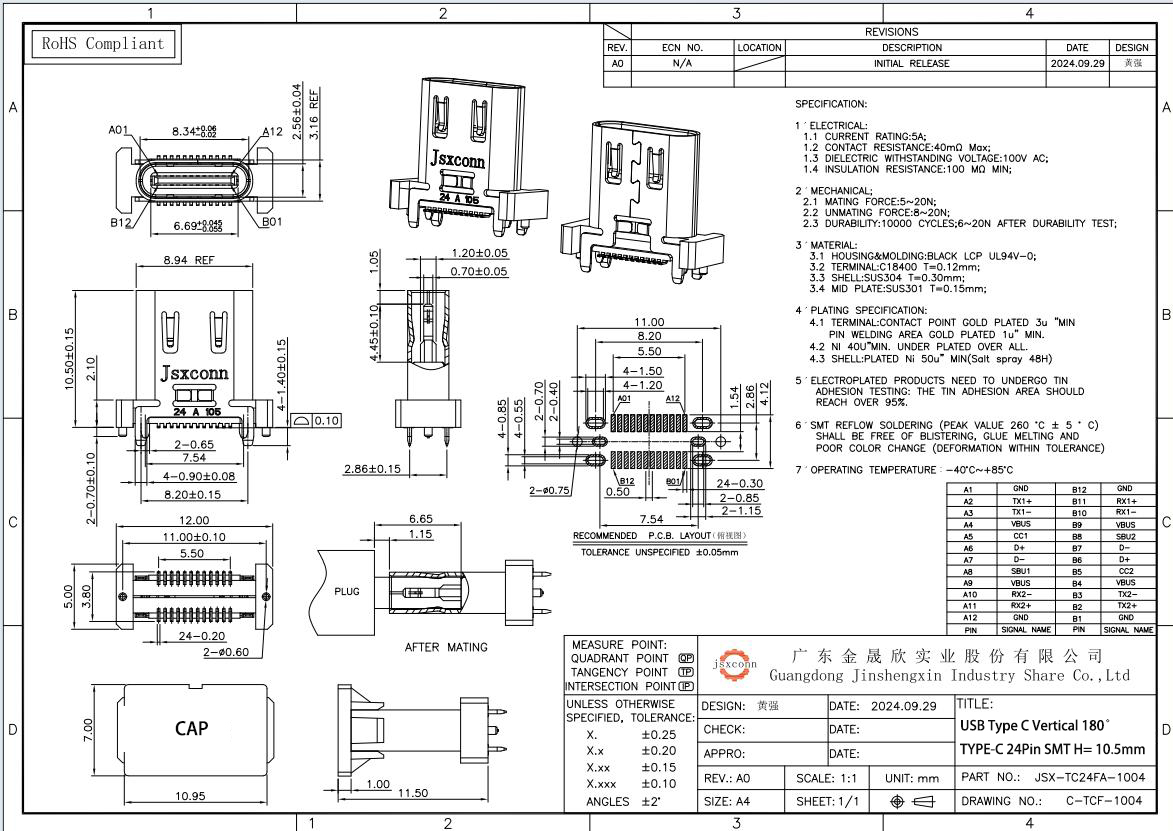

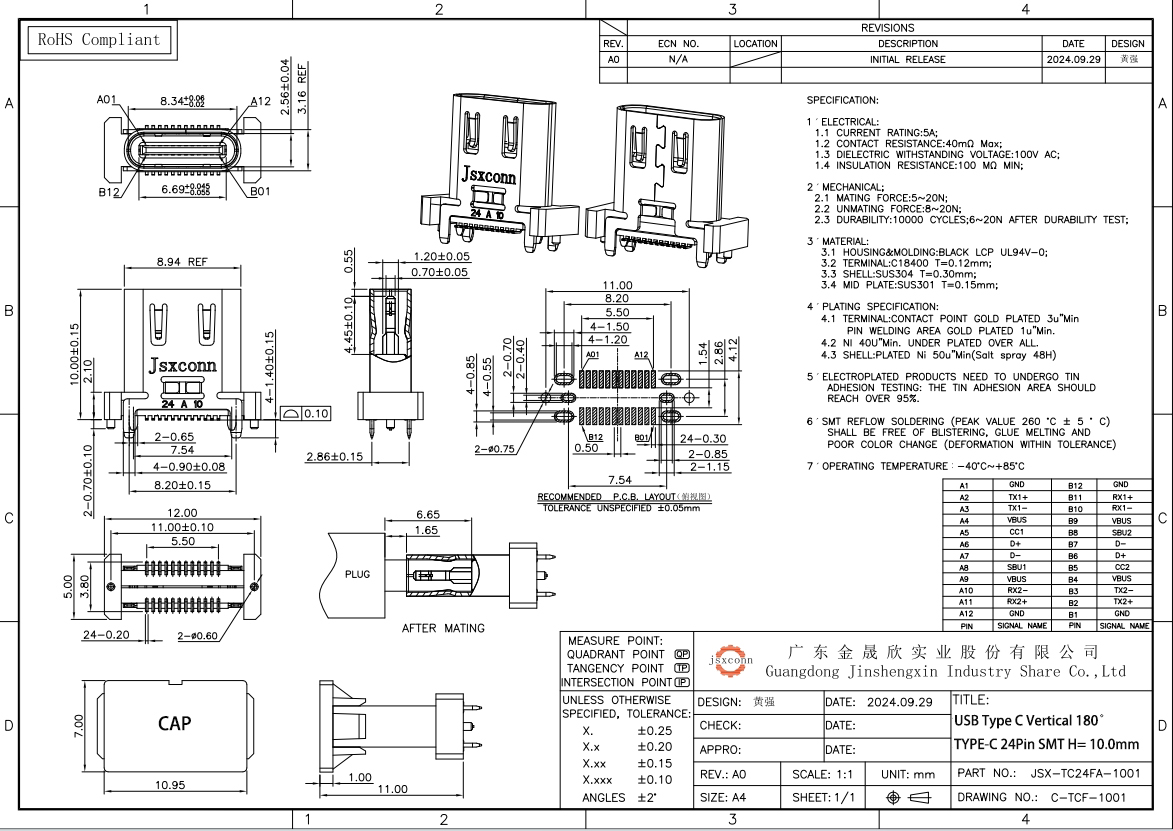

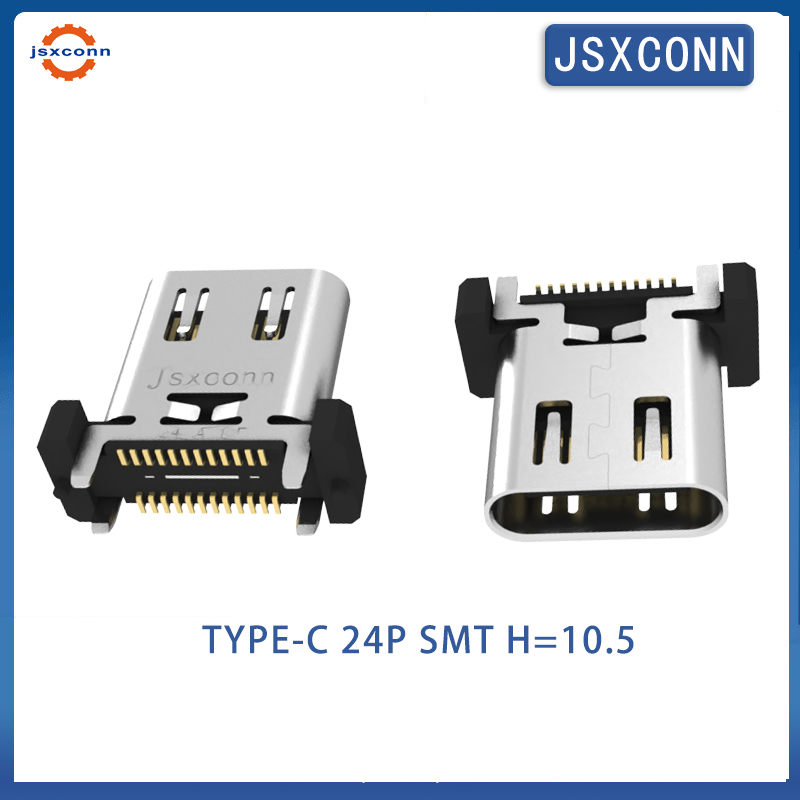

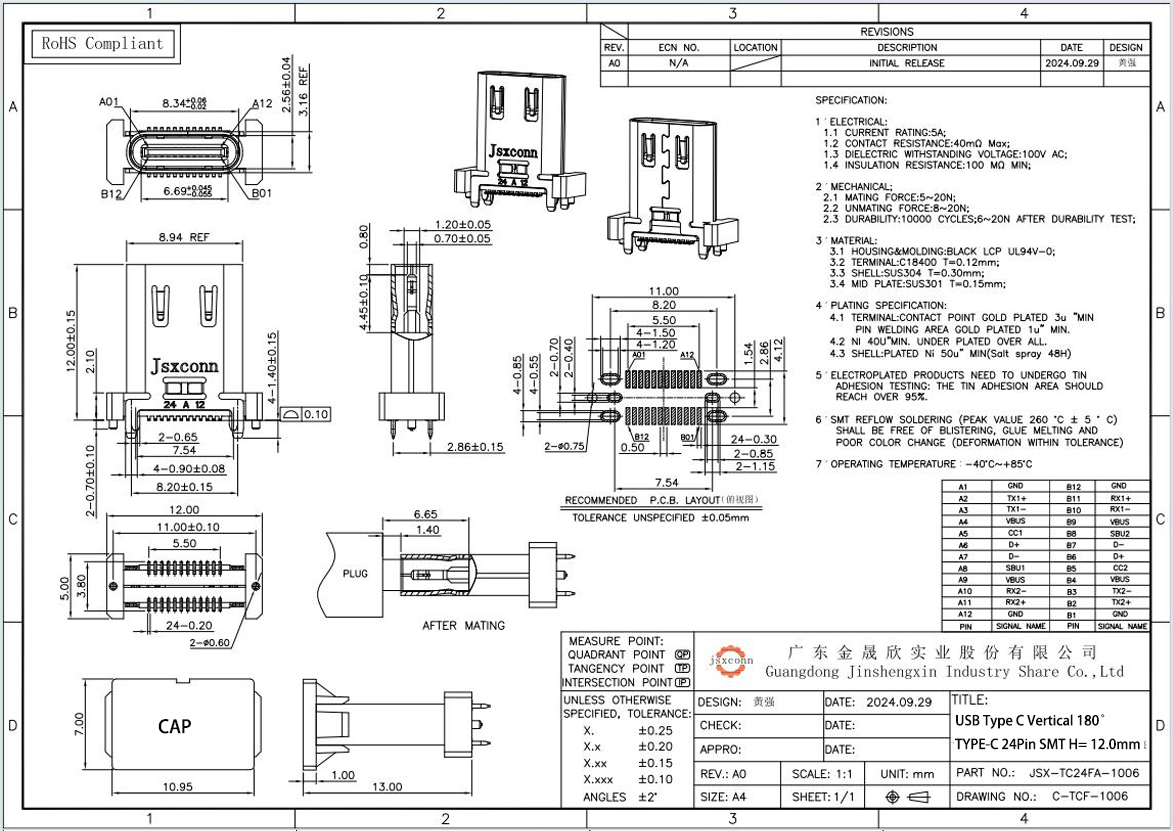

Type C Female USB C Connector 24Pin Vertical 180° SMT Connector | JinShengXin
USB-IF Certified High-Reliability Type-C Connectors for Industrial & Consumer Electronics
As a professional Type-C connector manufacturer with 12+ years of experience, JinShengXin offers premium Type C Female USB C Connector 24Pin Vertical 180° SMT Connector. Engineered for stable performance, durability and global standard compliance, our connectors are ideal for PCB integration in laptops, power banks, industrial controls, smart home devices and automotive electronics.
Key Features
1. 24Pin Full Configuration & Precision Engineering
Supports USB 3.1 Gen 2 40Gbps high-speed data transmission and 5A fast charging. Vertical 180° SMT design ensures easy PCB mounting, stable soldering joints, reduced assembly errors and improved production efficiency.
2. Industry Certifications & 100% Quality Test
All connectors are USB-IF TID certified and compliant with IEC 62680 standards for global device compatibility. 100% pre-shipment electrical testing (contact resistance, insulation resistance, voltage withstand) guarantees zero defects.
3. Durable Materials for Harsh Environments
- Housing: High-temperature resistant LCP plastic, withstands 260°C reflow soldering without deformation.
- Contacts: Gold-plated copper alloy for corrosion resistance and low contact resistance, supporting 10,000+ mating cycles.
- Custom IP67 waterproof version available for outdoor/industrial applications.
4. OEM/ODM Customization Support
Tailored solutions include custom housing colors/sizes, modified pin lengths/layouts, enhanced EMI/RFI shielding and automated assembly-compatible packaging.
Why Choose KingShengXin?
- 12+ years of B2B expertise in Type-C connector R&D and manufacturing, serving global electronics, automotive and industrial clients.
- Free samples available for performance and compatibility testing before bulk orders.
- Competitive pricing, flexible MOQs and fast lead times (7-15 days for standard orders).
- One-on-one technical support from our engineering team for seamless PCB integration.
Applications
- Consumer Electronics: Laptops, tablets, smartphones, power adapters
- Industrial Equipment: PLC controllers, industrial computers, test instruments
- Automotive Electronics: Car chargers, infotainment systems, OBD devices
- Medical Devices: Portable diagnostic tools, medical chargers
Contact Us
Upgrade your products with reliable Type-C connectors. Fill out our online form to request free samples or get a custom quote. Our team will respond within 24 hours.
